Parts And Accessories

This Eachine EV800 is their 3rd FPV goggle. The biggest “invention” of this model, is the 2:1 design which allows using the EV800 as FPV glasses but also as a regular 5″ FPV display. The 6 mm tripod screw hole allows the installation of the screen on a tripod and uses it in a very comfortable way.

Thanks to the integrated 40CH 5.8G FPV receiver with RaceBand, these FPV goggles are compatible with almost any 5.8G FPV transmitter. Unfortunately, there is no HDMI input like on the Eachine Goggles One, so can’t be used with DJI Phantom 3 and Phantom 4.

The Eachine EV800 features a 5″ LCD display with 800 x 480 pixels and 140/120-degree viewing angle. Unlike the other two Eachine goggles where the battery is external, the EV800 has a built-in high capacity 2000 mAh Li-Po battery. On the top front part of the EV800 FPV glasses are located, beside the RP-SMA antenna connector, the control buttons.

Features:

1. With comfortable face sponge and AV IN function
2. Separable design, the 5-inch screen can be used as a small monitor on a radio controller or with a tripod
3. HD high brightness 5inch LCD specially tuned for FPV racing
4. Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand
5. Come with an advanced auto-searching function ad show you the working frequency on screen
6. Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time
7. Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as backup power sour, to prolong the working time
8. Ergonomic design fit your face
9. Super-wide visible angle up to 82 degrees
10. 92% transparent lens adopted, no distort, no blur on the adage of the screen
11. Lightweight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
12. 5 inch 800*480px HD high brightness LCD

Package Includes :

1 X Eachine EV800 5 Inches 800×480 FPV Goggles

1 X Antenna

1 X User Manual

1 X Clean cloth

1 X Bag

The DJI Goggles N3 offers an immersive and seamless flying experience, designed to bring you into the cockpit with advanced features like head tracking and a 1080p ultra-wide screen. When paired with DJI Neo, DJI Avata 2, and DJI RC Motion 3, these goggles enhance your control and provide smooth, high-definition video transmission. The design is comfortable, even for glasses wearers, and includes defogging capabilities for changing weather. Whether you’re a seasoned pilot or a newcomer, the DJI Goggles N3 makes every flight feel like a personal adventure.

Embrace the Pilot's Perspective

When paired with DJI Neo/DJI Avata 2 and DJI RC Motion 3, DJI Goggles N3 lets you soar through the skies and enjoy an immersive flight experience, as if you were in the pilot seat. Activate the head tracking function to control Neo/Avata 2 with head or wrist movements, achieving seamless synergy.

Ready to Use, Streamlined Creation

Roomy and Eyewear-Friendly Design: The roomy interior comfortably accommodates glasses, without needing diopter adjustments or lens installations. Simply put them on, and you can take off right away.

Integrated Design: The integrated headband and battery design balance the overall weight of the goggles, ensuring no pressure on your face for a comfortable fit.

One-Tap Defogging: When fog builds up on the surface of the lenses, the defogging function effectively controls moisture by accelerating the internal fan speed to swiftly circulate air, making it ideal for changing temperatures and high-humidity conditions.

1080p Ultra-Wide Screen

DJI Goggles N3 has a full 1080p screen and an impressive 54° FOV. Enjoy stunning visuals as impactful aerial scenes come alive before your eyes.

O4 FHD Video Transmission

The advanced DJI O4 digital video transmission system adopts the same antenna design as Goggles 2, offering exceptional anti-interference performance. Enjoy 1080p/60fps live feeds with a minimum latency of 31 ms and a transmission range of up to 13 km. The goggles automatically select the optimal frequency band between 2.4 GHz and 5.8 GHz based on the environment. This ensures stable transmission so you can experience flying in real-time and get a buttery-smooth live view.

With a max video transmission bitrate of 60 Mbps and SyncSmooth technology, video transmission from the skies to the ground is optimized, providing a smooth live view even when flying at a high speed.

AR Cursor

DJI RC Motion 3 can be used as an AR cursor before the aircraft takes off, or when the aircraft is hovering after braking. This allows you to effortlessly activate functions and adjust settings without taking your hands off RC Motion 3.

2.7-Hour Operating Time

A fully charged DJI Goggles N3 can last through the use of up to 13 DJI Neo batteries. With a powerful 2.7-hour operating time, you can unleash your creative passion and potential to the fullest.

Features:

1. Head Tracking : Control flight with head or wrist movements.
2. Roomy Design: Comfortable fit for glasses wearers.
3. Integrated Design: Combines headband and battery for balance.
4. One-Tap Defogging: Prevents fogging by accelerating air circulation.
5. 1080p Ultra-Wide Screen: 54° FOV for clear and immersive visuals.
6. O4 FHD Video Transmission: 1080p/60fps live feed with minimal latency.
7. AR Cursor:Use DJI RC Motion 3 to control settings.
8. 2.7-Hour Battery Life: Long operating time for extended flying.
9. Compatibility: Works with DJI Avata 2 and DJI Neo.
10. Max Video Transmission Range: Up to 13 km with stable connection.

`

Package Includes:

1 x DJI Goggles N3

To provide users with a cost-effective entry into HD systems while ensuring an excellent experience, we have developed the first single-screen HD goggles equipped with head tracking functionality. This innovative device is designed to deliver an unparalleled FPV experience, allowing pilots to enjoy the combined benefits of head tracking and HD visuals.

Features:

1. The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.
2. It also supports PPM signal output to Radio Controllers via the Goggles L’s 3.5mm headphone TX connector, which in turn outputs to the drone.
3. Employing cutting-edge optical design, the goggles offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.
4. With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.
5. Featuring a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.
6. Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.
7. The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.
8. Compatibility with all current Walksnail VTX models ensures stability and the ability to fly when you want to, in both indoor and outdoor environments.
9. The front cover has an added light-up feature with a cool light bar design to add a technological touch to your gear.
10. Utilizing premium polyurethane foam, the goggles’ face mask ensures softness and comfort, while reducing light leakage for an enhanced wearing experience.
11. The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.

Package Includes:

1 x Walksnail Avatar Goggle L

1 x Straight DC5.5-XT60 Power Cord

1 x Storage Bag

1 x Lens Cleaning Cloth

Pultruded carbon fiber square tube(Hollow) manufactured from 100% unidirectional carbon fiber, which gives them excellent strength along their length but does make them vulnerable to crushing forces.

Pultruded tubes are ideal for scale aircraft, gliders, helicopter or any construction that requires strength, rigidity, and lightness. The Pultrusion process allows incredible tiny diameter tubes to be produced.

Pultrusion :

Pultrusion is a method of manufacturing continuous lengths of a fibre-reinforced section by pulling continuous strands of carbon fiber through resin and a former before curing the resin all in one process.

Features:

1. Made of Carbon Fiber material
2. High Strength
3. Stable dimension and UV resistant
4. High Corrosion Resistance
5. Electrical & Thermal Non-Conductivity

Package Includes:

1 x 3K Roll- pultruded Square Carbon Fiber Tube (Hollow) 10mm(OD) * 8mm(ID) * 1000mm(L)

This is 20CM Lipo Battery Strap Belt Reusable Cable Tie Wrap.

These LiPo battery straps, measuring 20mm wide by 200mm long, with a grippy, non-slip silicone backing are just what you need to hold your batteries in place.

Features :

1. Magic tape with buckle, ideal for power Li-Po battery management.
2. Organize your batteries more simple, easy to find.

Package Includes :

1 x 20cm Lipo Battery Strap Belt.

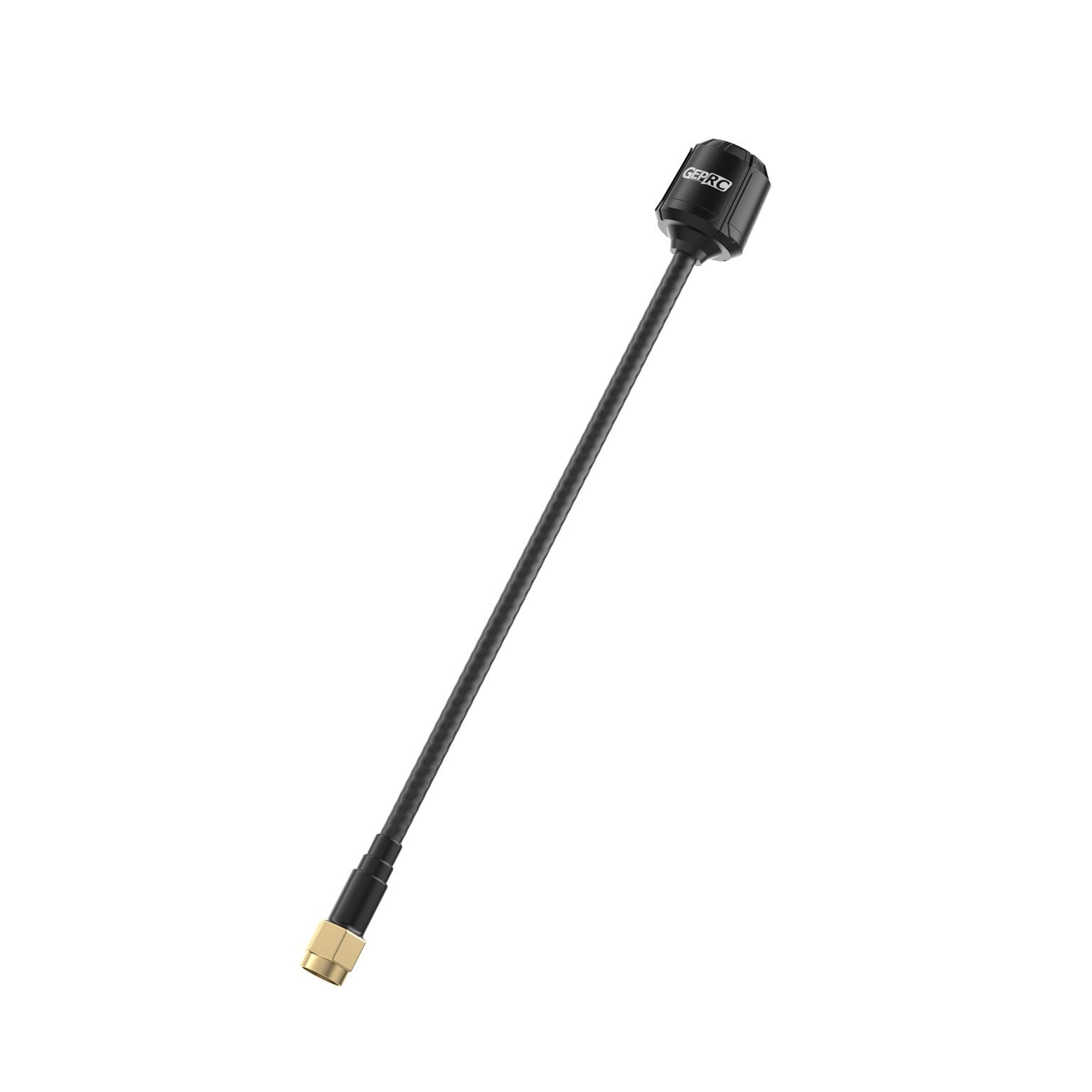

The GEPRC Momoda2 5.8G antenna adopts the latest radio frequency solution in the FPV industry, pairing PCB with FPC structure to enhance signal frequency consistency while minimizing signal transmission power loss. It offers two polarization options, RHCP and LHCP, within the 5.8GHz frequency band.

Features

1.  The ingenious exterior design integrates a sleek metallic style, appealing to the eye.
2.  The advanced radio frequency structure effectively minimizes transmission loss.
3.  The connectors come in various lengths and styles to accommodate diverse application needs.
4.  Every antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

Specifications

• Model： GEPRC Momoda2 5.8G antenna
• Center Frequency： 5.65G
• Bandwidth：5.3GHz～6GHz
• Polarization: LHCP/RHCP
• Gain: 2.45dbi
• Axial Ratio：≤3
• SWR: ≤1.43
• Radiation Efficiency: 85%
• Cross Polarization Suppression: -25dB
• Length：120mm-170mm
• Antenna Design: FPC+PCB
• Antenna Weight: 3.8g-11.6g
• Enclosure Material: ABS
• Connector Types: SMA / RP-SMA / AngleMMCX / UFL

Includes

1*Momoda 5.8G antenna

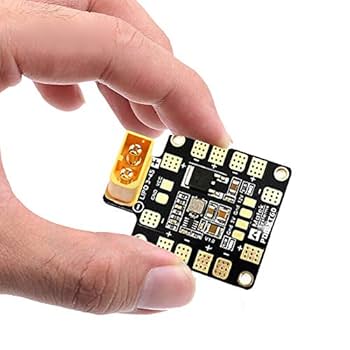

Matek PDB-XT60 with BEC 5V and 12V Power Distribution Board have been engineered to provide the highest possible performance and reliability in a 36x50mm, 4 layer PCB. It comes with an XT60 for easy connection to LiPo batteries.

Using BECs it distributes power from 3~4S LiPo packs to 6 ESCs, as well as providing synchronized and regulated DC 5V outputs for RC Receivers, Flight controllers, OSD, and Servos.

It also provides linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It offers an XT60 socket to connect the LiPo pack conveniently.

The PDB-XT60 with BEC 5V and 12V is a great package to get your Racing Drones powered up for racing.

Note:

Since this is an Open Source Power Distribution Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finally selected best amongst them. Our product works exactly same as we have described above in the description.

Features :

1. 4-layers and 1.6mm PCB
2. Built-in XT60 Socket
3. Total 6 pairs ESC solder tabs are fit for H or X type frame
4. 5V and 12V Output LED indicators
5. Regulated 5V and 12V outputs
6. BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
7. Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
8. Short-circuit tolerant: 5 seconds/minute
9. BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
10. BEC 12V output (3S LiPoly): =3S LiPoly voltage – 1V

Package includes :

1 x PDB-XT60 W/BEC 5V and 12V board

1 x XT60 male Connector

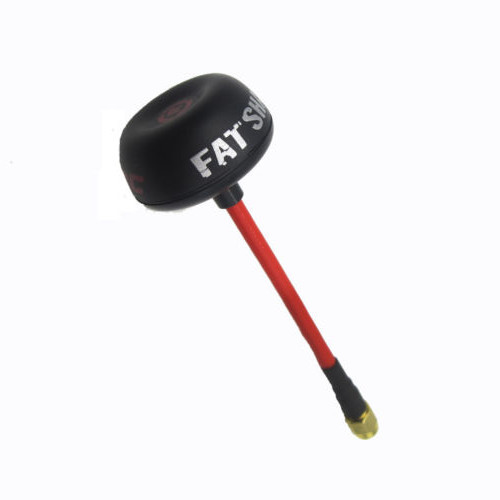

The Fatshark ImmersionRC SpiroNet 5.8GHz SMA Antenna has introduced their new skew planar wheel Circularly Polarized SpiroNet Antennas. The new design is optimized in terms of radiation pattern and VSWR, the Skew planar wheel design gives you better range and performance in any orientation than the previous cloverleaf/skew planner combination.

These new Antennas also now include an improved wire stem (red) for greater rigidity, and there is now no differentiation between TX and RX. SpiroNet antennas are without a doubt the best replacement available for your stock whip antennas. Manufactured to extremely high tolerances and 100% tested on a Rhode & Schwartz analyzer, these antennas yield unparalleled results when compared to handmade variants or DIY antennas.

Right-hand circular polarization or (RHCP) have well and truly been established as the antenna of choice for 5.8GHz FPV use and now SMA users can also enjoy the benefits without the head-scratching involved in making them yourself.

The Hard case enclosure will ensure that your Antennas are never damaged or bent out of shape while handling or after a rough landing while the flexible cable ensures easy positioning for optimum performance. The flexible cable can be bent at a 90deg angle and will retain its shape making it ideal for goggles with horizontal SMA outputs.

Features :

1. The new design is optimized in terms of radiation pattern and VSWR.
2. The Skew planar wheel design gives you better range and performance in any orientation
3. Include an improved wire stems (red) for greater rigidity, and there is now no differentiation between TX and RX.
4. Right-hand circular polarization or (RHCP) for 5.8GHz FPV use.
5. The Hard case enclosure will protect your antennas.
6. The flexible cable ensures easy positioning for optimum performance.
7. The flexible cable can be bent at a 90° angle for goggles with horizontal SMA outputs.

Package Includes :

1 x Fatshark ImmersionRC SpiroNet 5.8GHz SMA Antenna

This is EFT Power Cable 440mm/XT90/Male/1pcs Compatible with All Drone Frames. It is a single cable, 440mm in length, featuring an XT90 male connector. This cable is designed to be compatible with all drone frames and is likely used for power connections or related electrical components in drone systems.

Features:

1. Easy to use
2. Good quality product
3. Cable Length: 440mm (44cm) in length.
4. Connector Type: XT90 male connector.
5. Compatibility: Designed to be compatible with all drone frames.
6. Purpose: Likely used for power connections or related electrical components in drone systems.

Package Includes:

1 x EFT Power Cable 440mm/XT90/Male Compatible with All Drone Frames

This is EFT GPS Bracket 60mm/ Nylon/1pcs Compatible with Extended GPS Stand, a single bracket made of nylon, measuring 100mm in size. It’s designed to be compatible with the Extended GPS Stand. This bracket likely serves as a mounting or support mechanism specifically for the Extended GPS Stand, aiding in securing or positioning the GPS unit on the drone.

Features:

1. Easy to use
2. Good quality product
3. Bracket Type: 60mm nylon bracket, one piece included.
4. Compatibility: Designed specifically for use with the Extended GPS Stand.
5. Material: Made of nylon.
6. Purpose: Serves as a mounting or support mechanism for securing or positioning the GPS unit on the drone.

Package Includes:

1 X EFT GPS Bracket 60mm/ Nylon/ Compatible with Extended GPS Stand

This is EFT Landing Gear Bar φ20*φ18*500/Shock-Absorbing Mat/2pcs Compatible with E410P/E610P. It’s a critical part of a drone’s structure, contributing significantly to its stability and flight characteristics. Compatibility and proper installation of the arm assembly are essential for the drone’s overall performance and stability during flight.

Made of lightweight but durable materials & the design is engineered for strength while keeping the drone lightweight.

Features:

1. Color: Black
2. Material: Composite
3. Cylindrical shape with a larger diameter of 20mm to a inner diameter of 18mm over a length of 500m.
4. Easy to use
5. Good quality product

Package Includes:

2 x EFT Landing Gear Bar φ20*φ18*500/Shock-Absorbing Mat Compatible with E410P/E610P
