Gps & Navigation

The Axisflying M10 GPS Module is a high-performance navigation solution designed for FPV freestyle and long-range drone applications. Engineered for precision and reliability, this module features an integrated electronic compass, ensuring enhanced orientation and stability during flight.

Features:

1. High Sensitivity: Tracking sensitivity of -167 dBm for reliable performance.
2. Fast Start Times: Cold start in 26 seconds; hot start in just 1 second.
3. Accurate Positioning: Horizontal accuracy of 2.0 m CEP for precise navigation.
4. Versatile Protocols: Supports NMEA-0183 and UBX protocols for integration.
5. Durable Design: Operates in extreme temperatures from -40 °C to +85 °C.
6. Compact Size: Lightweight design at only 12.0 g for easy installation.
7. Memory Retention: 4M FLASH memory retains configurations after power loss.
8. Integrated Compass: Internal electronic compass for improved orientation.

Package Includes:

1 x Axisflying M10 GPS Module w/compass for FPV freestyle and LongRange

The Axisflying M80Q GPS Module is a high-performance navigation solution designed for FPV freestyle and long-range drone applications. Engineered for precision and reliability, this module features an integrated electronic compass, ensuring enhanced orientation and stability during flight.

Features:

1. High Sensitivity: Tracking sensitivity of -167 dBm for reliable performance.
2. Fast Start Times: Cold start in 26 seconds; hot start in just 1 second.
3. Accurate Positioning: Horizontal accuracy of 2.0 m CEP for precise navigation.
4. Versatile Protocols: Supports NMEA-0183 and UBX protocols for integration.
5. Durable Design: Operates in extreme temperatures from -40 °C to +85 °C.
6. Compact Size: Lightweight design at only 12.0 g for easy installation.
7. Memory Retention: 4M FLASH memory retains configurations after power loss.
8. Integrated Compass: Internal electronic compass for improved orientation.

Package Includes:

1 x Axisflying M80Q GPS Module w/compass for FPV freestyle and LongRange

The FS-CGPS01 adopts the NEO-M8Q chip, supports GPS, Galileo, Beidou, and other satellite systems, and features high sensitivity, short acquisition time, strong anti-interference ability, and low power consumption.

The FS-CGPS01 can be used for fixed wings, and traversal machines (5 inches, 7 inches larger models) training to view satellite quantity, ground distance, ground speed, height, direction, longitude, latitude, etc. By viewing the ground distance, the height, and ground speed can provide some reference data for evaluating battery life or training effects, and can provide data on the aircraft in the aircraft by the ground distance and direction. For the vehicle model, the speed can be measured by GPS.

Cautions:

1. Ensure that the product and model are installed correctly before use, otherwise, the model may be seriously damaged.
2. Keep the GPS installed horizontally, install it higher than the machine body as far as possible, and keep it away from high current and strong magnetic objects;
3. Avoid overexertion to damage any objects;
4. If the bracket is not installed, please stick the GPS to the model frame using 3M.
5. If you need to install the bracket, please stick the GPS on the bracket using 3M and keep the following installation status.

 Features:

1. Item Name: FS-CGPS01 GPS
2. Model: FS-CGPS01
3. Master Chip: NEO-MBQ
4. Channels: 72
5. Satellite Systems Supported: GPS | Galileo | Beidou
6. Number of Satellites Searched: > 12
7. Tracking: -167dBm
8. Capture: -160dBm
9. Cold Start: -148dBm
10. Hot Start: -157d Bm
11. Cold Start Time: Average 265
12. Hot Start Time: Average Is
13. Positioning Accuracy: 0.3 degrees
14. Accuracy of Speed Measurement: 0.05 m/s
15. Time Accuracy: RMS 99% 30ns
16. LED: Yes
17. Frequengy Range: 1559NH – 1606 MHZ
18. Update Frequency: 10Hz
19. Data Format: i-BUS
20. Input Power: 4.0 ~ 8.4V
21. Temperature Range: -15°C~ +60°C
22. Humidity Range: 20%6 ~ 95%6
23. Dimensions: 52.4 x 50 x 18.5mm
24. Weight: 30g
25. Certification: CE.FCC

Package Includes:

1 x FlySky FS-CGPS01 GPS Module

Holybro introduces this new GPS for you to work with PIXHAWK4. It has UBLOX M8N module on it, as well as IST8310 compass and tri-coloured LED indicator. Additionally, the Safety switch on it will make the connection more convenient and simple.

Out of the box, this GPS module comes with Mounting Stand with two (70mm & 140mm ) carbon rods.

Pixhawk 4 is the latest update to the successful family of Pixhawk flight controllers. It is designed and developed in collaboration with Holybro and the PX4 team, optimized to run the full Dronecode stack and comes preinstalled with the latest PX4 firmware (v1.7).

It features the currently most advanced processor technology from ST Microelectronics, sensor technology from Bosch, InvenSense and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

Features:

Ublox Neo-M8N module

Industry-leading 167 dBm navigation sensitivity

Cold starts: 26s

LNA MAX2659ELT+

25 x 25 x 4 mm ceramic patch antenna

Rechargeable Farah capacitance

Low noise 3.3V regulator

Fix indicator LEDs

Protective case

26cm Pixhawk4 compatible 10-pin cable included

Diameter 50mm total size, 32 grams with the case.

Package Includes:

1 x NEO-M8 with compass module

1 x ‘X’ type folding pedestal mount with fitting screws

1 x Carbon rod 100mm

The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Feature:

1. Ublox M9N GNSS Reciever
2. Accurate Positioning
3. Fast Navigation Update Rate
4. IST8310 Compass
5. High-gain 25*25*4mm antenna
6. Internal Buzzer, Safety switch
7. Ultra Bright UI RGB LED

Packages Includes:

1 x M9N GPS Module (Standard Connector)

1 x Fixed Carbon Fiber GPS mount

The Holybro Fixed Carbon Fiber GPS Mount is an essential accessory designed to securely hold GPS modules on UAVs and drones. Constructed with high-quality aluminum and carbon fiber, this GPS mount offers robust durability and lightweight performance. Specifically designed for the H-RTK F9P RoverLite and DroneCAN H-RTK F9P Rover, this mount ensures precise positioning and stability for accurate GPS readings. Its CNC-manufactured aluminum components and carbon fiber tube provide a perfect blend of strength and minimal weight, making it an ideal choice for professional drone setups.

Features:

1. High-Quality Materials: Made from CNC-manufactured aluminum and carbon fiber for exceptional durability and lightweight performance.
2. Secure Mounting: Ensures stable and precise positioning of the GPS module for accurate data collection.
3. Compatibility: Specifically designed for H-RTK F9P RoverLite and DroneCAN H-RTK F9P Rover GPS modules.
4. Easy Installation: Simple to attach to UAVs and drones, providing a secure and reliable GPS mounting solution.
5. Optimal Design: Fixed design with a 40mm diameter to fit a wide range of UAV configurations.

Package Includes:

1 x Holybro Fixed Carbon Fiber GPS mount (For 1st GPS – Dia 40mm)

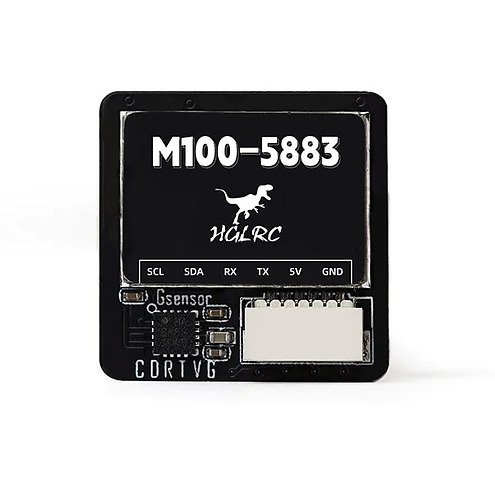

HGLRC M100-5883 is a GPS module with compass suitable for freestyle and long range drones using Betaflight, iNav or Ardupilot firmware. The GPS module uses the newer M10 chip, which has better sensitivity and catches satellites faster than previous types with the M8 chip. With a size of 21x21x8mm, the GPS module is especially suitable for classic 5″ drones or larger 7″ drones. GPS status is indicated by LEDs. GPS is connected via a connector, but solder pads are also available.

Features:

1. Multi-Satellite Support
2. Ceramic Antenna
3. Compact Design
4. 10th Gen Chip
5. 72 Channels

Package Includes

1. 1x M100-5883 GPS Module

The Holybro DroneCAN GPS has an UBLOX M8N or M9N module, BMM150 compass, tri-colored LED indicator. It has the STM32G4 Processor and adopted the DroneCAN protocol for communication, making it more reliable and better in dealing with electromagnetic interference compare to serial connection. It does not occupy any serial port of the flight controller, and different CAN devices can be connected to the same CAN bus via a CAN splitter board.

Features:

1. Advanced GNSS Technology
2. Powerful Processor
3. DroneCAN Protocol
4. Clear Status Indication
5. Serial Port Efficiency
6. CAN Bus Compatibility
7.  LNA MAX2659ELT+ RF Amplifier
8. Rechargeable Farah capacitance
9.  Low noise 3.3V regulator

Package Includes:

1 x Holybro DroneCAN M9N GPS

The JIYI GPS for K++ V2 is an advanced navigation module designed to provide accurate positioning and reliable connectivity for a wide range of applications, including drones, robotics, and IoT devices. With its compact design and robust performance, this GPS module ensures seamless integration and enhanced functionality, making it an ideal choice for developers and enthusiasts alike.

Features:

1. High Sensitivity: Equipped with cutting-edge technology for superior accuracy even in challenging environments.
2. Fast Position Fix: Achieves a position lock quickly, reducing waiting times and improving efficiency.
3. Multi-Constellation Support: Compatible with GPS, GLONASS, BeiDou, and Galileo systems for increased reliability and precision.
4. Low Power Consumption: Optimized for energy efficiency, making it suitable for battery-operated devices.
5. Compact Size: Designed for easy integration into various projects without adding significant weight.
6. Built-in Antenna: Ensures optimal signal reception without the need for external components.
7. User-Friendly Interface: Simple integration with standard serial protocols, making it accessible for developers of all skill levels.

Package Includes:

1. 1 x JIYI GPS for K++ V2

Holybro Micro M9N GPS With Case uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, a rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

Ublox M9N GNSS Reciever

Accurate Positioning

Fast Navigation Update Rate

IST8310 Compass

Small Form Factor

Package Includes:

1x Micro GPS module *1

1x JST GH 6 Position Connector 15 cm

1x JST-GH 6pin Colored Silicon Cable 15 cm

The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

This connector can be used on Pixhawk Standard Flight Controller 6pin“UART & I2C”or "GPS2" input port as secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

Feature:

1. Ublox M9N GNSS Reciever
2. Accurate Positioning
3. Fast Navigation Update Rate
4. IST8310 Compass
5. High-gain 25*25*4mm antenna
6. Internal Buzzer, Safety switch
7. Ultra Bright UI RGB LED

Packages Includes:

1 x M9N GPS Module

1 x Fixed Carbon Fiber GPS mount

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable):

This connector can be used on Pixhawk Standard Flight Controller 6pin“UART & I2C”or "GPS2" input port as secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

Firmware Support for M10 GPS:

Features:

1. Newest Ublox 10th Gen GNSS
2. Fast & Accurate Positioning
3. High-gain 25*25*4mm antenna
4. IST8310 Compass
5. Internal Buzzer, Safety switch
6. Ultra Bright UI RGB LED

Package Includes:

1x M10 GPS Module

1x Fixed Carbon Fiber GPS mount

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):

These connectors are for "Switch", "GPS", and "I2C" input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8

Features:

1. Newest Ublox 10th Gen GNSS
2. Fast & Accurate Positioning
3. High-gain 25*25*4mm antenna
4. IST8310 Compass
5. Internal Buzzer, Safety switch
6. Ultra Bright UI RGB LED

Package Includes:

1x M10 GPS Module

1x Fixed Carbon Fiber GPS mount

Holybro Micro M10 GPS With Case uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, a rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

The newest Ublox 10th Gen GNSS

Fast & Accurate Positioning

IST8310 Compass

Small Form Factor

Package Includes:

1x Micro GPS module *1

1x JST GH 6 Position Connector 15 cm

1x JST-GH 6pin Colored Silicon Cable 15 cm
