Flight Controller

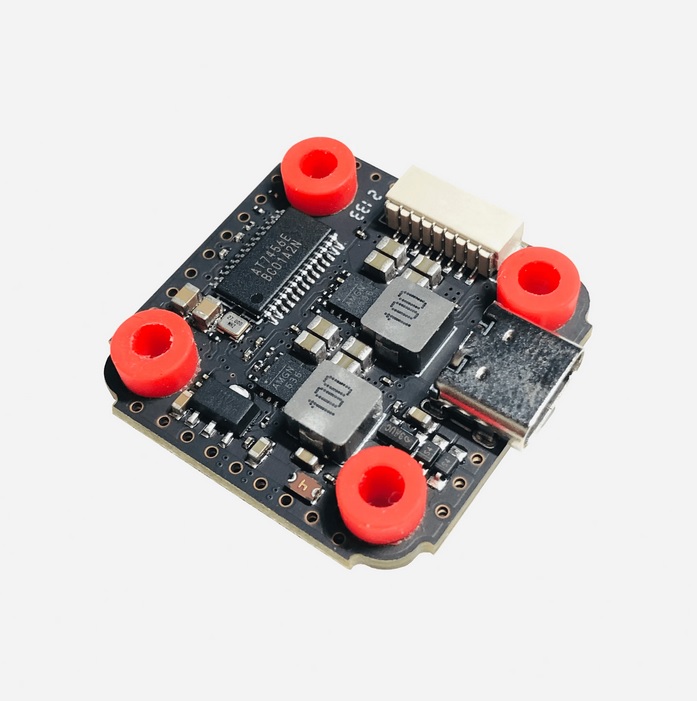

This is an Aocoda F7 MINI V1.0 Flight Controller for Huafei.

The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand.

The MPU6500 is the most widely used IMU sensor, and it’s used in nearly all of the greatest flight controllers. The reason for this is that it has a high vibration tolerance and can sample the gyro at 8kHz over an SPI interface.

Note: Product can vary from images in terms of Color and Design

Features:

1. High performance & efficient flight controller & ESC
2. Light weight, Easy to connect
3. Compact in size
4. Flight controller comes with ARM processor
5. Compact size
6. Easy to Connect

Pinouts:

Packages Include:

1 x F7 MINI V1.0 Flight Controller for Huafei

The Axisflying Argus Plug and Play STACK 65A & F7 is a high-performance flight control and ESC stack, designed for FPV drone applications, especially racing and freestyle drones. This stack combines a powerful F7 flight controller with a 4-in-1 65A ESC, providing a compact, reliable solution for smooth and responsive flight.

The Axisflying Argus STACK 65A & F7 is an ideal solution for FPV pilots looking for powerful performance in a streamlined package. Its plug-and-play design, robust 65A ESC, and advanced F7 flight controller make it a great choice for those aiming for smooth, responsive, and reliable flights in racing, freestyle, and cinematic applications.

Features:

1. F7 Flight Controller: Fast processor, Betaflight OSD, dual gyroscope, and USB Type-C for easy updates.
2. 65A 4-in-1 ESC: 65A continuous, 75A peak, with BLHeli_32 and DShot support for smooth motor control.
3. Plug and Play: Pre-soldered connectors and compact design for quick, organized installation.
4. Wide Compatibility: 3S–6S voltage, compatible with analog and digital FPV systems, ideal for freestyle, racing, and cinematic drones.

Applications:

1. Freestyle FPV: Responsive control and robust ESC for quick maneuvers and flips.
2. Racing FPV: Low latency and high power for competitive performance.
3. Cinematic FPV: Stable flight control and smooth power delivery, ideal for precise cinematic shots.
4. Long Range FPV: Reliable and adaptable for extended flights with ample telemetry options.

Package Includes:

1 x Axisflying Argus Plug and Play STACK 65A & F7

The Axisflying Argus PRO Plug and Play STACK combines an F7 flight controller with a 65A ESC, ideal for high-performance FPV drones. The flight controller of the Axisflying Argus PRO Stack is equipped with a powerful F7 chip, enabling faster calculations and improved responsiveness compared to older models like the F3 or F4.

It features a high-performance 6-axis gyro, typically the ICM20689 or a similar model, which ensures precise orientation tracking and stability during flight. Additionally, the integrated On-Screen Display (OSD) provides real-time telemetry data, such as voltage, current, and battery status, allowing pilots to monitor critical information while flying. The flight controller is compatible with popular software like Betaflight and INAV, offering flexibility for tuning and customization based on individual preferences. Furthermore, it includes multiple UART ports (usually 4-6) for connecting various peripherals, including telemetry systems, GPS modules, and receivers, as well as dedicated pads for soldering additional components or customizing connections, making it a versatile choice for drone enthusiasts.

Features:

1. Processor: F7 chip for faster calculations.
2. Gyroscope: 6-axis gyro (ICM20689) for stability.
3. OSD: Integrated for real-time telemetry (voltage, current, battery status).
4. Software Compatibility: Works with Betaflight and INAV.
5. Ports: 4-6 UART ports for peripherals; soldering pads for customization.
6. Current Rating: 65A continuous, over 90A burst.
7. Input Voltage: Compatible with 2-6S LiPo batteries.
8. Firmware: BLHeli_32 for advanced features.
9. Protection: Overcurrent, over-temperature, and undervoltage safeguards.
10. Size: Fits standard drone frames.
11. Weight: Lightweight for optimal performance.
12. Ease of Use: Plug-and-play design for quick installation.

Package Includes:

1 x Axisflying Argus PRO Plug and Play STACK 55A & F7

The Axisflying Argus Plug and Play STACK combines a high-performance F7 flight controller with a 4-in-1 ESC, making it an ideal choice for advanced drone builds. Available in 55A and 65A versions, this stack offers durability and flexibility for FPV drones and is built to handle both freestyle and racing conditions

This stack is particularly suited for high-performance setups where stability, power efficiency, and compatibility with various FPV accessories are essential.

Features:

1. Amperage: Available in both 55A and 65A continuous ratings, with a burst rating of 100A, handling high-power setups.
2. Firmware: Pre-installed with BLHeli_32 firmware, providing smooth and responsive motor control.
3. Protocol Support: DShot1200, Multishot, and OneShot protocols for fast signal processing and high control fidelity.
4. Voltage Range: Supports 3-6S LiPo batteries, ideal for high-performance applications.
5. Protection Features: Built-in over-current, over-temperature, and short-circuit protection, enhancing durability and reliability.
6. Capacitor Integration: Integrated capacitors help reduce electrical noise and maintain stable power delivery.

Applications:

1. Freestyle FPV: High responsiveness and durability for complex maneuvers.
2. Racing FPV: Low-latency control and high power for fast-paced racing.
3. Long-Range FPV: Stable performance and GPS compatibility for extended flights.
4. Cinematic FPV: Smooth motor control and low noise, perfect for filming.
5. Aerial Photography: Reliable power for cameras and simple installation for professional setups.

Package Includes:

1 x Axisflying Argus Plug and Play STACK 55A/65A & F7

The Axisflying Argus Plug and Play F7 is a cutting-edge flight controller designed for drone enthusiasts and professionals seeking advanced performance and versatility. Powered by the STM32F722RET6 processor, it offers exceptional processing capabilities and supports a wide range of features to enhance your flying experience.

Features:

1. High-Performance Control: Powered by STM32F722RET6 for superior responsiveness.
2. Data Logging: 16M Flash Memory black box for flight data recording.
3. Stabilization: Equipped with BM1270 gyroscope and barometer support.
4. OSD Support: Real-time telemetry display for vital flight information.
5. Power Outputs: Dual BEC outputs (9V/2A, 5V/2A) for peripherals.
6. Flexible Connectivity: Six UART ports for connecting various devices.

Package Includes:

1 x Axisflying Argus Plug and Play F7

1x ESC Cable

1x GPS Cable

1x DJI Air Unit Wire

1x Receiver Wire

1x Beeper LED Wire

1x Analog Camera Cable

1x Analog VTX Wire

4x Shock Absorbing Rubber Rings

1x 5678 Motor Wire

1x Avatar VTX Wire

1x 8-Pin Plastic Case for ESC Cable

1x 10-Pin Plastic Case for ESC Cable

1x 6-Pin Plastic Case for GPS

1x 4-Pin Plastic Case for GPS

The Axisflying Argus Mini F7 Stack is a high-performance flight controller designed specifically for mini FPV drones. It features the powerful STM32F722RET6 MCU and the reliable MPU6000 gyro, ensuring stable and responsive flight performance.

Features:

1. Powerful MCU: Equipped with STM32F722RET6 for enhanced performance.
2. Stable Gyro: Utilizes MPU6000 for precise flight control.
3. Wide Voltage Support: Accepts 4-6S LiPo (14.8V – 26.1V).
4. Integrated BEC: 5V, 3A output for powering accessories.
5. OSD Support: Built-in On-Screen Display for real-time telemetry.
6. Multiple UART Ports: 5 UART ports for versatile connectivity.

Package Includes:

1 x Axisflying Argus Mini F7 STACK 40A FC

The Axisflying Argus Mini F7 Stack 40A ESC is engineered for high-performance mini FPV drones, delivering exceptional power and efficiency in a compact design. This advanced electronic speed controller is compatible with BLHeli32 firmware, ensuring smooth throttle response and precise control.

Features:

1. High Current Capacity: Continuous current of 40A and burst current of 50A.
2. Wide Voltage Range: Supports 4-6S LiPo (14.8-26.1V).
3. Telemetry Support: Enables real-time data monitoring during flight.
4. Adjustable PWM Frequency: Customizable between 24-96 kHz for optimal performance.
5. Compact and Lightweight: Size of 37 x 31.3 x 6.2 mm and weight of only 8.2 g.
6. BLHeli32 Compatibility: Optimized for smooth throttle response and precise control.

Package Includes:

1 x Axisflying Argus Mini F7 STACK 40A ESC

1x Wire (Short)

1x Wire (Long)

1x 35V 270μF Capacitor

8x Damping Ring

1x HD VTX Wire

4x M2 x 25 Screw

4x M2 Locknut

1x XT60 Power Cable

The Axisflying Argus ECO 55A + F405 Stack is a cutting-edge electronic system designed for FPV drone enthusiasts seeking lightweight yet powerful performance. This stack combines a high-efficiency 55A BLHeli-S ESC and the advanced F405 flight controller, offering exceptional control and stability for your drone.

The Argus ECO features an aluminum housing that significantly reduces weight compared to its predecessor, the Argus Pro, making it ideal for agile flight. With support for up to four motor outputs, building your drone has never been easier. The open circuit board design allows for straightforward soldering, providing flexibility for customization.

Features:

1. Lightweight aluminum housing reduces overall drone weight.
2. Supports up to 4 motor outputs for easy drone assembly.
3. Status indicator lights for quick working status checks.
4. Open circuit board design allows for free soldering.
5. 55A 6S BLHeli-S ESC for powerful motor control.
6. Advanced Axisflying F405 flight controller for efficient flight management.

Package Includes:

1 X Argus ECO F405 flight cotroller stack with 60/55A ESC For FPV Drone (60A)

The Axisflying Argus F7 AIO F722 40A without Aluminum Shell for Cinewhoops is an advanced All-in-One (AIO) flight controller and ESC stack designed for Cinewhoop drones, which are typically used for smooth, cinematic video footage.

Features:

1. F7 Flight Controller (F722): High-performance STM32F722 processor for smooth flight control.
2. 40A ESCs: Supports up to 40A continuous current per ESC, with BLHeli_32 firmware for precise motor control.
3. Cinewhoop-Specific: Lightweight design, perfect for carrying cameras and ensuring smooth, stable footage.
4. All-in-One Design: Integrated flight controller and ESCs for simplified installation and cleaner builds.
5. 6S LiPo Compatibility: Supports 3-6S batteries for versatile power options.
6. On-Screen Display (OSD): Real-time telemetry display for voltage, RSSI, etc.
7. Telemetry Support: Enables communication with ground control stations.
8. Built-in Protections: Overcurrent, overvoltage, and low-voltage protection for safety.
9. Compact and Lightweight: Optimized for Cinewhoops to minimize weight while maintaining high performance.

Flight Controller (F722)

1. Processor: STM32F722 (F7 Series)
2. Input Voltage: 3S-6S LiPo (11.1V to 25.2V)
3. Firmware Support: Betaflight, INAV, KISS
4. UART Ports: 4 UARTs for peripheral connections
5. IMU: 6-axis (Gyroscope + Accelerometer)
6. OSD: Integrated On-Screen Display for telemetry data
7. Blackbox: Yes (data logging)
8. ESC (Electronic Speed Controller):
9. Current Rating: 40A continuous, 45A peak per ESC

ESC

1. Firmware: BLHeli_32
2. Protocol: DShot 1200, DShot 150, DShot 300
3. Input Voltage: 3S-6S LiPo
4. Current Sensing: Yes (for real-time power monitoring)
5. Protections: Overcurrent, overvoltage, low-voltage protection

Applications:

1. Cinematic FPV Filming: For smooth, stable aerial video capture.
2. FPV Racing/Freestyle: Responsive control for racing or freestyle drones.
3. Aerial Photography/Videography: Stable flight for professional shoots.
4. Search and Rescue (SAR): Reliable for emergency operations.
5. Inspection Drones: Ideal for detailed industrial inspections.
6. Commercial/Film Production: High-quality drone shots in tight spaces.
7. Wildlife/Environmental Monitoring: Steady footage in challenging environments.
8. DIY FPV Builds: Perfect for hobbyists and custom drone projects.

Package Includes:

1 x Axisflying Argus F7 AIO F722 40A without Aluminum shell for Cinewhoops

The Axisflying Argus F7 AIO F722 40A is a cutting-edge all-in-one flight controller designed specifically for Cinewhoop applications. This innovative unit reflects Axisflying’s commitment to quality and performance, showcasing our advanced research and development capabilities.

Features:

1. Rigorous Testing: Each unit undergoes 800 full throttle takeoff and landing tests.
2. Durable Construction: High-quality circuitry with a robust aluminum shell.
3. Effective Cooling: CNC heat sinks for improved thermal management.
4. Reliable Performance: Designed to eliminate desync issues for smooth operation.
5. Motor Compatibility: Perfectly matched with 20/21 size motors for optimal efficiency.

Package Includes:

1 x Axisflying Argus F7 AIO F722 40A with Aluminum shell for Cinewhoops

Advanced modular flight controller features triple redundancy for maximum reliability, integrating three ICM-45686 IMU sensors with BalancedGyro technology and two barometer sensors for enhanced precision. Powered by a high-performance STM32H753 processor with a clock speed of up to 480 MHz, it ensures robust processing capabilities. The modular design separates the IMU, FMU, and Base system, connected via a 100-pin and a 50-pin Pixhawk Autopilot Bus connector. With isolated sensor domains and a new vibration isolation material, this controller offers optimal stability and performance. The Ethernet interface allows for high-speed mission computer integration.

Features:

1. Triple Redundancy: Three ICM-45686 IMU sensors and two barometer sensors for enhanced precision and reliability.
2. High-Performance Processor: STM32H753 processor with a clock speed up to 480 MHz ensures robust processing capabilities.
3. Modular Design: Separates IMU, FMU, and Base system with Pixhawk® Autopilot Bus connectors for flexible integration.
4. Isolated Sensor Domains: Completely isolated sensor domains with separate buses and power control for maximum reliability.
5. Advanced Vibration Isolation: Durable vibration isolation material with higher spectrum resonance frequency for optimal stability.

Package Includes:

1 x Pixhawk 6X Flight Controller Module

1 x Pixhawk Standard Base / Pixhawk Mini Base

1 x PM02D HV Power Module

1 x Cable Set

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.

The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.

This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Features:

1. Voltage Compatibility: Supports a wide input voltage range from 2S to 14S for versatile applications.
2. Monitoring Capabilities: Provides real-time current consumption and battery voltage measurements through a 6 Pin JST-GH cable.
3. High Current Ratings: PCB continuous current rating of 70A and burst current rating of 120A (<60 seconds) ensures robust power distribution.
4. Efficient Power Distribution: Integrated power distribution for 4 ESCs simplifies wiring and optimizes energy transfer.
5. User-Friendly Design: Comes with pre-soldered XT60 connector, wires, and capacitor for easy installation and improved stability.
6. Compact and Lightweight: Compact dimensions (35x35x5mm) and a weight of 24g minimize overall drone weight impact.
7. Adaptable XT60 Plug: Pre-soldered XT60 plug and 12AWG wire rated for 30A continuous current and 60A burst current (<60 seconds).
8. Compatibility Notice: Not compatible with Pixhawk 5X & 6X; requires a digital PM like PM02D. Refer to a reference chart for adapting to higher currents.

Package Includes:

1x PM06 board

1x 80mm XT60 connector wire (installed)

1x Electrolytic capacitor: 220uF 63V(installed)

1x JST 6pin cable
